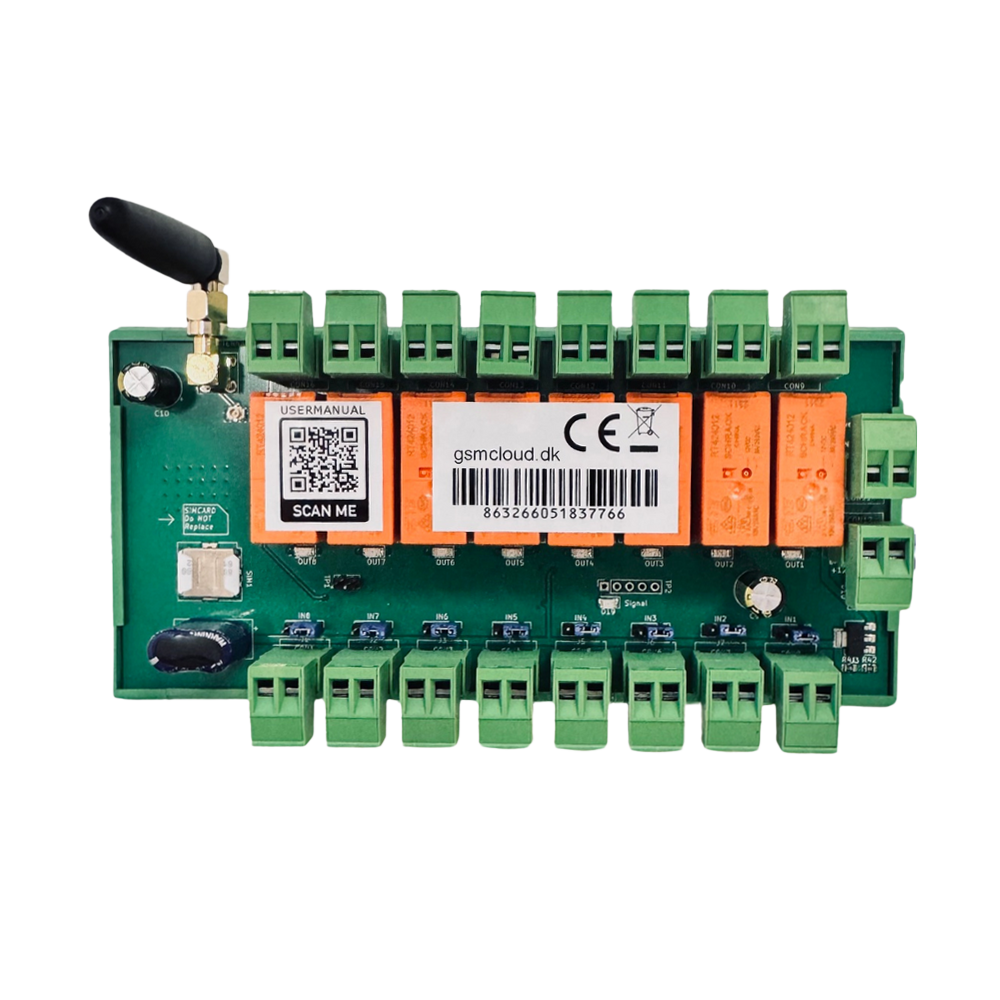

Control and monitor technical installations - fast, stable and completely Wi-Fi free - with our 8800 NB GSM Controller running on GSMCLOUD. The module is DIN-rail mounted and fits directly into a standard electrical panel. With 8 inputs and 8 relay outputs, you get flexible I/O for everything from heat pumps and solar panels to grain drying, charging stations, ventilation, pumps and alarms.
The 8800 is built for places where regular networks fail: basements, wells, utility rooms and remote installations. The built-in NB-IoT connection with SIM provides strong coverage, stable operation and roaming in over 20 countries.
Setup is done in minutes in GSMCLOUD with FLOW programming, where you build logic like “if/then” without coding. You get a dashboard, logs and alarms, and the solution works as an app on mobile, tablet and desktop.
Output 1
Max. 230VAC/8A
Output 2
Max. 230VAC/8A
Output 3
Max. 230VAC/8A
Output 4
Max. 230VAC/8A
Output 5
Max. 230VAC/8A
Output 6
Max. 230VAC/8A
Output 7
Max. 230VAC/8A
Output 8
Max. 230VAC/8A
Power Input (12VDC)
Power Output (12VDC)
Input 1
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 2
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 3
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 4
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 6
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 5
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 7
ON/OFF / 4-20mA
DS18B20 / Pulse counting
Input 8
ON/OFF / 4-20mA
DS18B20 / Pulse counting
SMA connector with included antenna.
You can find our manuals and guides in our PDF archive.
In our helpdesk you will find answers to most questions.
At GSMCLOUD we offer Danish and English telephone support to our customers.
Module: GSM Controller 8800 (IP65)
Standard package includes:
Model number: 1611-IP65
Module: GSM Controller 8800 (DIN)
Standard package includes:
Model number: 1611-DIN
