PIR sensor BLE flow

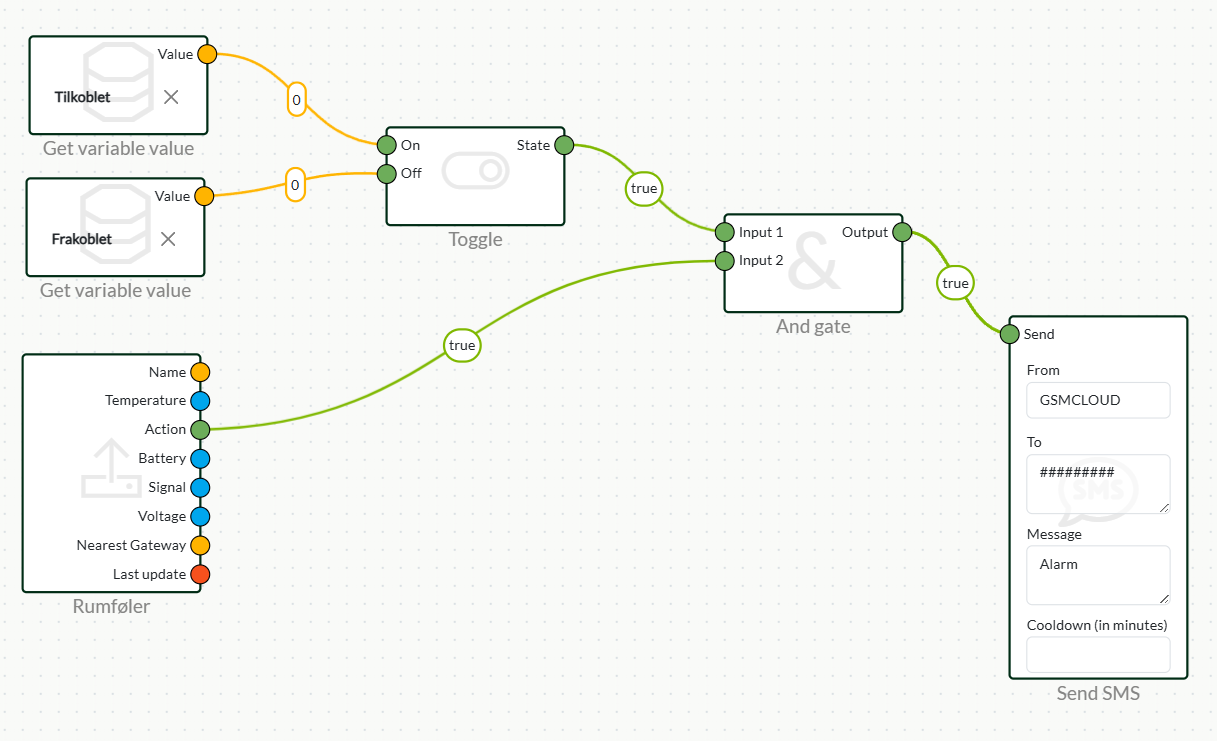

Flow setup

1. Start by pulling your beacon into the flow.
2. Drag to Get variable value from the Dashboard menu.
3. Drag a Set variable value from the Dashboard menu.
4. Drag an And gate from the Logic menu.
5. Drag a Toggle in from the Logic menu
6. Connect from beacon: Action to Input 2 in Andgate
7. Also, in the last two Set variable values, create one called Connected and Disconnected.
8. Drag a line from on and off to a Toggle where on goes to On and off goes to Off.
9. Drag a Send SMS in from Notification and connect from And gate output to Send on Send SMS. Fill in your details and what you want the SMS to say.

Dashboard

1. Tap Menu: Dashboard in the top menu.
2. Tap into an existing dashboard or create a new one.
3. Press Edit on the right side and select a: Button and a Value.
4. Press the small nut on the Button and give it a title e.g. Alarm mode, connect the Variable value armed and disarmed to two buttons with different colors.
5. Press the nut for value and give it a title such as Status and connect the Variable value to the one called Magnetic switch.
6. Finish by pressing save on the right side.

Mobile view

1. Tap share on the right side.
2. Turn Allow public access on.
3. With that url page, you can access your dashboard on your phone as an app.

Please note! This flow is just an example, your flow can be built according to your needs, this flow is just for inspiration.
