LegacyLINK is our thoroughly tested communication protocol, which has been a central part of the GSMCloud platform since 2020. The protocol has been developed with a focus on Stabilne dryfowanie, simple communication and long lifespan in professional installations.
With LegacyLINK, the device sends a data packet to GSMCloud and subsequently receives a reply back. This form of communication provides a Robust and predictable data exchange, where the unit works stably in the field, while Intelligence, configuration, and management are handled centrally in the cloud.
The communication interval can typically be adapted from every 10 seconds up to 1440 minutes, depending on the needs of the individual solution. This makes LegacyLINK suitable for both monitoring, status reporting, and control tasks, where Driftssikkerhed, flexibility and High complexity are important requirements.
LegacyLINK is an important part of the foundation behind GSMCloud and is still used in many products and installations, where tried and tested technology, stable communication and Long-term operation are central elements. The protocol is particularly well-suited for solutions where a simple and well-tested communication model creates high stability and easy integration.
NB-IoT is an efficient communication technology for professional IoT controls, where Low power consumption, Stable connection and reliable data transfer is crucial.
The technology is based on a Narrowband LTE standard, developed for IoT devices that need to send small amounts of data securely and efficiently over the mobile network. This makes NB-IoT particularly suitable for solutions where the device needs to operate stably in the field for a long time.
With NB-IoT, our IoT controllers get a Robust mobile connection, which is suitable for monitoring, measurement data, alarm management and control tasks – also on installations without a traditional internet connection.

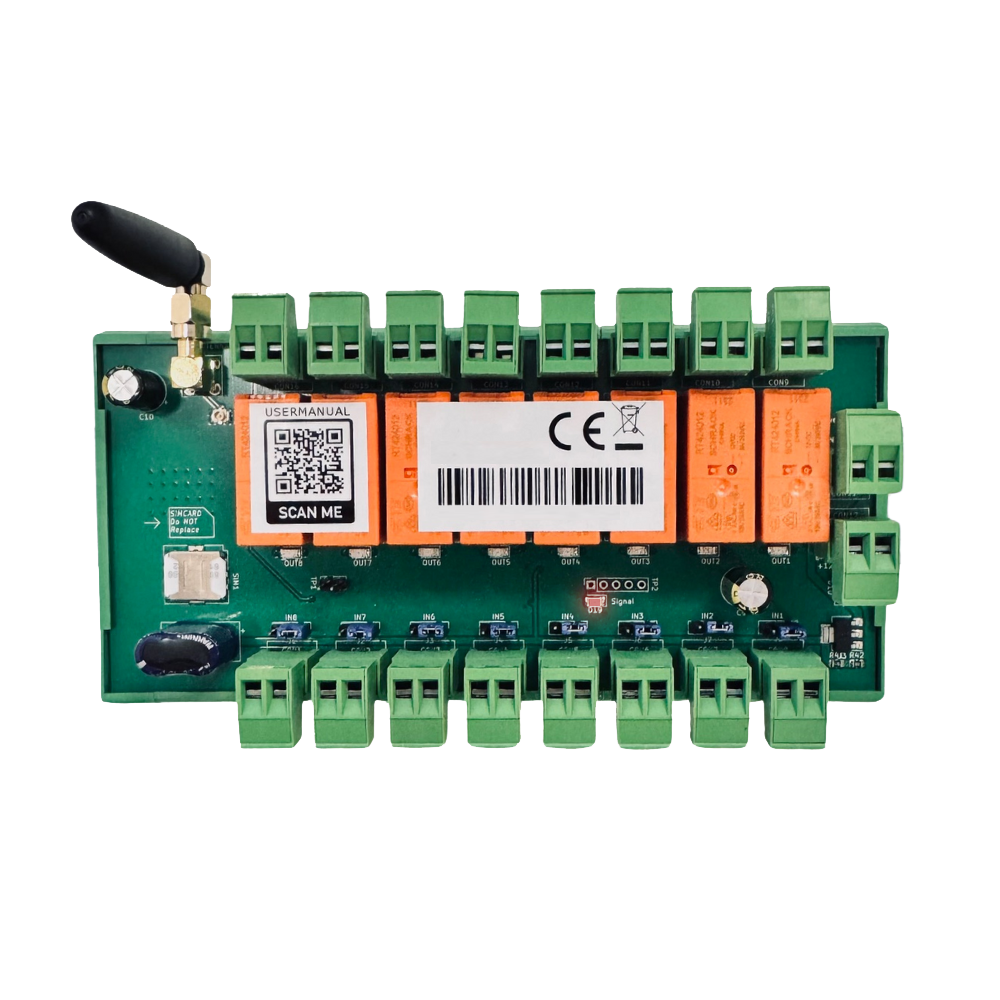

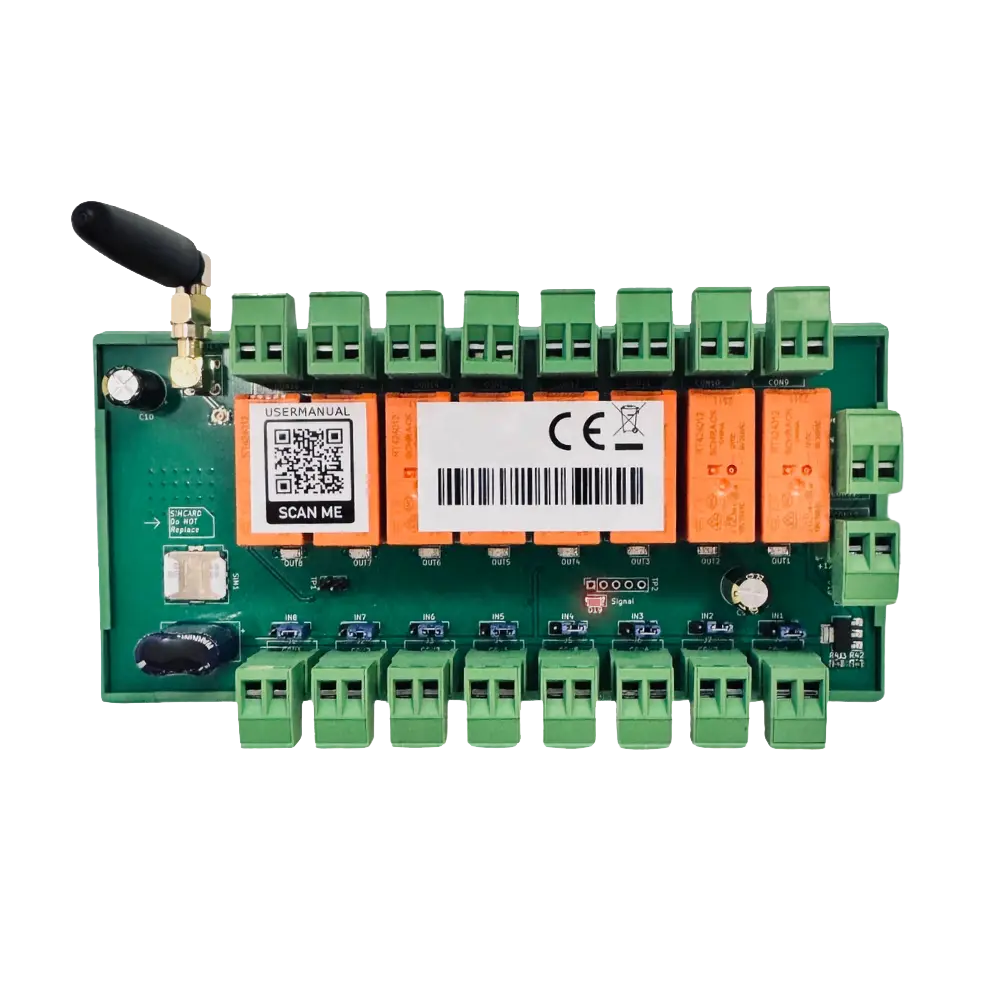

| Name | GSM Controller 8800 |
| Weight | 0,296 kg |
| Dimensions | 15,6 × 8,4 × 3,5 cm |
| DIN modules | 9 pieces. |
| Protocol | LegacyLINK |
| Cellular | NB-IOT |
| LTE category | LTE Cat NB1 / NB2 |
| SIM card | Built-in and ready to use |
| Supported countries | View our coverage map |
| Cellular Antenna | SMA-Hun – 2dBi angle antenna included |
| Subscription | See our current subscription prices |
| Inputs Maximum | 8 Inputs |
| Outputs | 8 Outputs |
| LED indication | Status LED |
| 1-Wire (DS18B20) | 8 Inputs |
| Pulse count | 8 Inputs |
| Analog input (0-20mA) | 8 Inputs |
| Digital Input (ON/OFF) | 8 Inputs |
| Relay outputs | 8 Outputs (Max. 30VDC / 3A) |
| Supply voltage | 12VDC |
1611-DIN
GSM controller 8800 12V (DIN)
1611-IP65
GSM Controller 8800 12V (IP65)
